IP66 P4 SMD LED Display Screen High Definition Aluminum Cabinet Full Waterproof

China IP66 P4 SMD LED Display Screen High Definition Aluminum Cabinet Full Waterproof supplier
IP66 P4 SMD LED Display Screen High Definition Aluminum Cabinet Full Waterproof supplier IP66 P4 SMD LED Display Screen High Definition Aluminum Cabinet Full Waterproof supplier

Large Image :  IP66 P4 SMD LED Display Screen High Definition Aluminum Cabinet Full Waterproof

Product Details:

Place of Origin: ShenZhen China
Brand Name: Megagem
Certification: CE,ROHS,FCC
Model Number: MOS-4

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flightcase; Plywood Case
Delivery Time: 18-25days
Payment Terms: T/T, Western Union
Supply Ability: 4000sqm/Month
Contact Now
Detailed Product Description
Product Name: P4 Smd Outdoor LED Screen Refresh Rate: 1920hz
Brightness: >6000nits LED: Nationstar SMD3535
Power Supply: Meanwell Ingress Protection: IP66

High Definition P4 Smd Outdoor LED Screen Aluminum Cabinet Full Waterproof Advertising Display

Features

1. Unique PCB design to ensure amazing display effect
2. High quality waterproof module and cabinet design to ensure lifespan and safety
3. High resolution of 40,000 pixels per square meter ensures good image quality at clsoe view
4. Different cabinet size design to match different project size requirement


Item MOS-4
Pixel Pitch 4mm
Pixel Density 62500dos/sqm
LED Package SMD1921
Module Size 256*128mm
Module Resolution 64*32dot
Cabinet Size 768*768mm
Cabinet Resolution 192*192dot
Cabinet Materials Iron / Aluminum
Cabinet Wegiht 45kg/sq.m
Brightness >6000nits
Refresh Rate >1920hz
Viewing Angle 14/140°
Max Power Consumption 840W/sqm
Ave. Power Consumptio 330W/sqm
Life Span >100,000 Hours
Operating Humidity 10% - 95%
Certificate CE,ROHS,FCC,ACMA
Input Source All Format (AVI, MPEG,VOB, RM, etc)


Description:

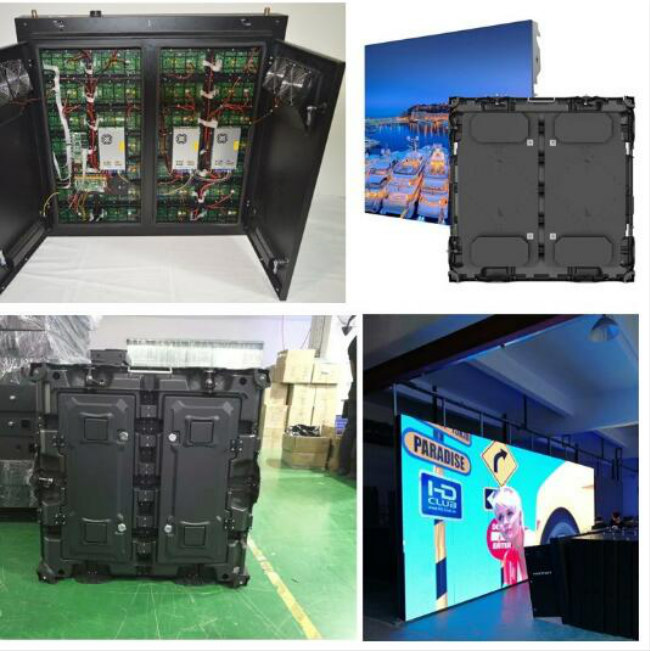

1.Cabinet structure is with light weight and standardization: Adopting high strength metal process, achieving high precision, light weight and other outstanding features; Uniform image picture with high refresh frequency and gray level to realize the vivid effect.

2.High bearing strength and fast installation through the connecting plate. With flexible installation, such as embedded installation, post mounting, etc. It would not occur the extrusion and deformation phenomenon between the modules when the display is working under the high and low temperatures.

3.Achieve low heat, low noise and low radiation: Through the good structure design, ensure Low decibel value and stable performance when it works in the normal temperature; Passed the EMC test.

4.High voltage thermal pull out plug in application: It will not strike fire during pull out the plug process, and fully accomplish the phenomenon such as waterproof, anti-interference, corrosion resistance, etc.

5.The module cases with the handle for installation and maintenance, the mask is not reflective, and resistance to ultraviolet ray, do not fade for 5 years, contrast to 1000: 1, cabinet flatness coefficient < 0.5 mm, power factory can reach more than 88%.

6.Double backup data and applications of optical fiber system, ensures that the screen can work in high efficiency, stability, security situation. The rational allocation of light sensor, the LED display will in the best work state and dynamic energy saver by adjusting


IP66 P4 SMD LED Display Screen High Definition Aluminum Cabinet Full Waterproof
