• IP67 1000x1000mm 1920Hz Outdoor Led Tv Display High Definition LED screen
  • IP67 1000x1000mm 1920Hz Outdoor Led Tv Display High Definition LED screen
  • IP67 1000x1000mm 1920Hz Outdoor Led Tv Display High Definition LED screen
IP67 1000x1000mm 1920Hz Outdoor Led Tv Display High Definition LED screen

IP67 1000x1000mm 1920Hz Outdoor Led Tv Display High Definition LED screen

Product Details:

Place of Origin: Guangdong, China
Brand Name: EliteLED, OEM
Certification: CE
Model Number: P3.91 P4.81 P6.25

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Wooden cases or carton box
Delivery Time: 20 days
Get Best Price Contact Now

Detail Information

Application: Outdoor Led TV Wall Color: Full Color
Pixel Pitch: 3-10mm Brightness: 6000-10000nits

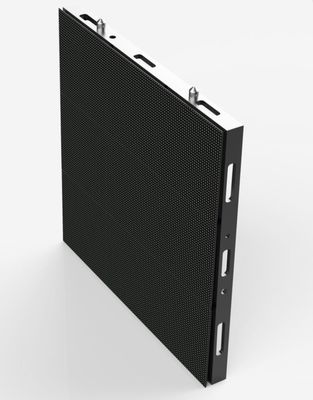

Product Name: Front Access Led Display Cabinet Size: 1000x1000mm
Module Size: 500x250mm LED Chip: Kinglight
Refresh Rate: 1920 Hz Material: Profile Aluminum
Control System: Nova Certificate: CE ROHS FCC
Warranty: 2 Years
High Light:

1000x1000mm Outdoor Led Tv Display

,

1000x1000mm high definition led screen

,

1920Hz Outdoor Led Tv Display

Product Description

IP67 Outdoor Low Power Comsumption Big Led TV High Definition Led Video Wall



Features:



1. High Brightness: Up to 6000-10000 nits! Make sure the screen is still clear enough even under the sunlight directly.


2. Energy Saving: Using common cathode power supply and led lamp, much lower power consumption and less heat, no need air conditioning.

IP67 1000x1000mm 1920Hz Outdoor Led Tv Display High Definition LED screen 0
3. High Performance: Die casting aluminum cabinet with aluminum base module, good heat dissipation and durable, not fear sun, rain or wind at all.


4. Front Maintenance: Easy to install and maintain, saving space and labor cost.


5. COMPETITIVE PRICE: You are welcome to get a free project evaluation. Thank you!

Model No. P10.41 P7.8 P6.25 P5.2 P4.8 P3.9
Pixel pitch 10.4mm 7.82mm 6.25mm 5.2mm 4.81mm 3.91mm
Pixel density
(dots/m2)
9246 16352 25600 36982 43264 65536
LED encapsulation SMD3535 SMD2727 SMD2727 SMD2727 SMD1921 SMD1921
Scan rate 1/2 scan 1/4 scan 1/5 scan 1/6 scan 1/7 scan 1/8 scan
Module size 500 x 250 mm
Module Resolution 48 x 24 64 x 32 80 x 40 96 x 48 104 x 52 128 x 64
Cabinet size 1000 x 1000 x 73mm (Optional)
Cabinet Resolution 96 x 96 128 x 128 160 x 160 192 x 192 208 x 208 256 x 256
Weight per Cabinet 24.5 kg
Brightness ≥6500/
10000nits
≥6000/
10000nits
≥6000/
10000nits
≥5500 ≥5000 ≥5000
Max.power consumption 500W 500W 500W 550W 800W 800W
Ave.power consumption 175W 175W 175W 185W 270W 270W
Energy Saving design 2.8V & 3.8V Low voltage 4.6V / 5V voltage
Protection Degree Front IP67/Rear IP65
Service Front & Rear Dual service
Power Supply AC120 /240V (50Hz) (optional)
Refresh Rate ≥ 1920Hz(3840Hz Optional)



IP67 1000x1000mm 1920Hz Outdoor Led Tv Display High Definition LED screen 2

Advantages:



1. Lightweight and ultra-thin: Light weight, easy to install and maintain, no need to support structural reinforcement costs, high efficiency.


2. Low power consumption: Using high-brightness LED lights, high conversion efficiency and PFC function power supply, reducing power consumption by more than half compared with conventional power supplies.


3. No steel structure: When installed on the wall of a building without steel structure, it can reduce the weight of steel structure by about 50kg per square meter.


4. Front maintenance: It can be installed from front and back, greatly improving various adaptive conditions for on-site installation.



IP67 1000x1000mm 1920Hz Outdoor Led Tv Display High Definition LED screen 3





FAQ:



1. How about the quality?



Our led products must be aging at least 48 hours before shipping, from purchasing raw materials to ship, each process has strict quality control systems to ensure led display with good quality.



2. What about the warranty?



We have two years warranty, spare parts such as led module, control card, power supply are damaged not caused of artificial damaged, then it's free maintenance and ship back new ones for replacement.


3. Can you offer technical support?



We provide free training for our customers, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Novastar and colorlight or Linsn control systems, our engineer can directly teach you how to operate. We're innovative high-end led display with over 10 years manufacturing experience, and we believe you can get a professional solution and best service from us. We're always happy to serve you. If any question, you are welcome to contact us!

Want to Know more details about this product
I am interested in IP67 1000x1000mm 1920Hz Outdoor Led Tv Display High Definition LED screen could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
