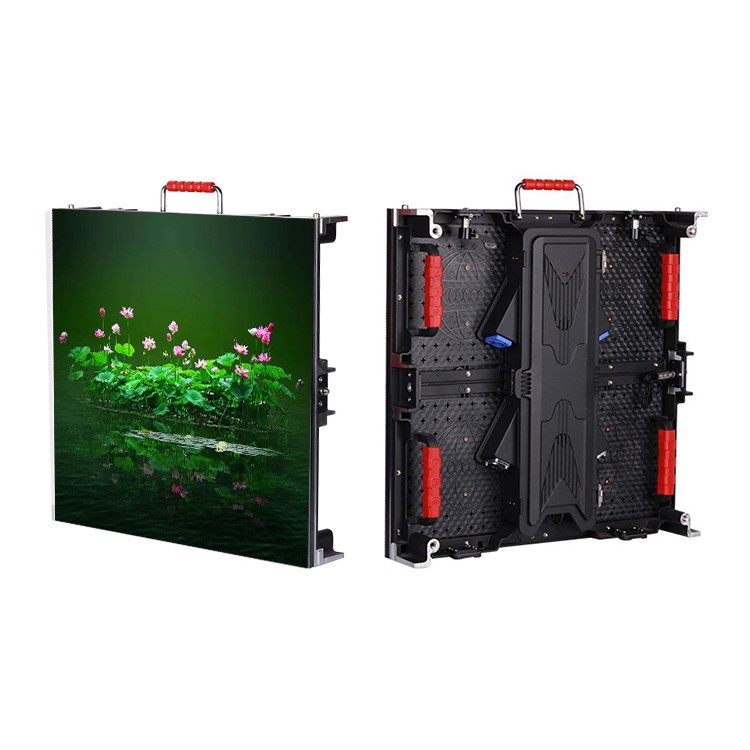

3840Hz 2.97mm Indoor Led Display Board Stage Background Video Wall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EliteLED, OEM |
| Certification: | CE |
| Model Number: | P2.97 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Flight case, or plywood case |
| Delivery Time: | 15 days |
| Supply Ability: | 3000 Square Meter/Month |
|
Detail Information |
|||
| Keywords: | Indoor Rental LED Display | Application: | Indoor Stage Rental |
|---|---|---|---|
| Pixel Pitch: | 2.97mm | Product Name: | LED Screen Display |
| Brightness: | 1200 Cd/sqm | Module Size: | 250x250mm |
| Cabinet Material: | Die-casting Alumium | Refresh Rate: | 3840Hz |
| Certificate: | CE ROHS | ||
| High Light: | 2.97mm Indoor Led Display Board,3840Hz Indoor Led Display Board,2.97mm Stage Background Video Wall |
||
Product Description
3840Hz 2.97mm Indoor Led Display Board Stage Background Video Wall
1. Standard dimension,module size 250mm * 250mm, cabinet size 500mm * 1000mm, compatible indoor P2.604/2.97/3.91 and outdoor P3.91/4.81.
2. High-precision die-cast aluminum cabinet, seamless unit box.
3. New design of hanging bar lock, one hand to fix two cabinets,anti-fool design to avoid loose cabinet caused by unintentional touch.
4. Total hard connection, easy to take off the power supply and receiving card.
5. Module with touchable back screw, uncessary to prepare tool, easy to fix and take off modules by hand.
6. Corners with small protectors, protect pixel while moving.
Indoor Rental LED Display Features:
1. High refresh rate, >3840HZ, which let the picture is vivider
2. All led panels have high strength corner protectors. Protect leds from damage during transportation and installation.
3. Convenient maintainance --- module front & rear service
4. Independent power supply box without wire
5. Support curve connection --- ±2.5°&5° concave & converse connection
| Pixel Pitch | 3.9mm |
| Pixel Configuration | SMD2121 |
| Module Resolution | 128*32dots |
| Module Pixles | 4096dots |
| Module Size | 250mmx250mm |
| LED Cabinet Specification | |
| Cabinet Size(W*H*D) | 500*500*70mm |
| Cabinet Resolution | 128*128dots |
| Module Quanity | 8pcs |
| Cabinet Pixels | 16384dots |
| Material | Die Casting Aluminum |
| Brightness | ≥1200cd/m2 |
| Pixel Density | 65536dots/m2 |
| Driving Method | 1/16 scan constant current |
| View Angle | 140H,120V |
| Optimal Viewing Distance | ≥3 |
| Brightness Control | Red,Green and Blue 4096 Grade/Each |
| Fresh requency | ≥2000Hz |
| Frame Frequency | 60Hz |
| Input Voltage | AC100 - 120V/50Hz |
| AC200 - 240V/50Hz | |
| Defects Rate | ≤0.00001 |
| Power Consumption | Max:160W/Cabinet Average:80W/Cabinet |
| Screen weight | 7.5kg/Cabinet |
| MTBF | >10,000 hours |
| Life span | ≥100,000 hours |
| Earth Leakage Current | <3mA |
LED Advertising Display Advantages:
1, High quality SMD led panels, stable and high durability.
2, Without ghosting, clear and clean.
3, High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.
Special designs:
- Electric leakage protection design with wooden floor Non-slip design
- Led truck screen with anti-vibration, butterfly connector is more anti-vibration,
- more stable current contact, less info loss,
- more stable transmission function. Suitable for led screen truck.
2. Reliable design: connect coterminous led cabinet by connecting plate and locating pin.
3. the protection level can reach up to IP65, and applicable to any rainy weather,t hus can used in any outdoor environment.
4. Wider viewing angle: Horizontal≥120º; Vertical≥120º, can attract more audiences' eye, very good for outdoor advertising.
1. How about the quality?
Our led products must be aging at least 48 hours before shipping, from purchasing raw materials to ship, each process has strict quality control systems to ensure led display with good quality.
2. What about the warranty?
We have two years warranty, spare parts such as led module, control card, power supply are damaged not caused of artificial damaged, then it's free maintenance and ship back new ones for replacement.
3. Can you offer a technical support?
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Novastar and colorlight or Linsn control systems, our engineer can directly teach you how to operate. We're innovative high-end led display with over 10 years manufacturing experience, and we believe you can get a professional solution and best service from us. We're happy to serve you. If any question, you are welcome to contact us!
