P2mm Advertising LED Poster Screen
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EliteLED, OEM |
| Model Number: | Indoor P2 |
Payment & Shipping Terms:
| Price: | $1,580.00/Pieces |
|---|---|
| Packaging Details: | Carton box or wooden box |
|
Detail Information |
|||
| Application: | Advertising | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 640x1920mm | Pixel Pitch: | 2mm |
| Product Name: | P2 LED Poster Display | Brightness: | 700 Cd/sqm |
| Module Size: | 320x160mm | Cabinet Size: | 640x1920mm |
| Refresh Rate: | 1920Hz | LED Chip: | KN-light, Nationstar |
| Certificate: | CE ROHS | Warranty: | 2 Years |
| High Light: | P2mm LED Poster Screen,P2mm Advertising LED Screen |
||
Product Description

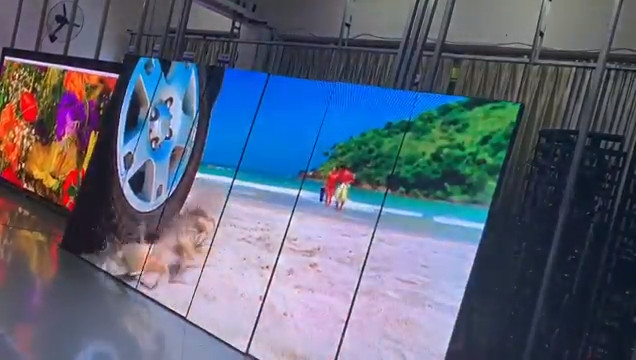

P2 LED poster display screen movable led standing advertising board
1. Lightweight and ultra-thin fashion design, perfect ad playback control.
2. The LED screen has the advantages of high refresh, high brightness, high contrast of color, and the playback effect is superior to the traditional LCD screen.
3. Support SD card and U disk playback media, stored program files can be played in a loop.
4. Support WIFI and 3G/4G mode for maintenance and update of programs.
5. It can be set to automatically turn on and off every day, without manual maintenance.
6. Support cluster play and management, agree that the cluster mirror screen can agree to design and update programs, saving time and effort.
7. The cabinet structure is designed with a modular frame and a metal body for easy installation, disassembly and maintenance.
8. The exterior of the cabinet is equipped with an acrylic plate to protect the screen body.
|
P2 led poster display parameters |
|
|
LED lamp |
SMD2121 |
|
Pixel pitch |
2mm |
|
Module resolution |
160*80 dots |
|
Module size(mm) |
320mm*160mm |
|
Module quantity |
2(W)*12(H) |
|
Display resolution |
320*960 dots |
|
Frame size(mm) |
660(W)*2000(H)* 100(D) |
|
Cabinet weight(KG) |
45 |
|
Brightness(CD) |
700 |
|
Color temperature |
3200-9300, adjustable |
|
Viewing angle(Deg) |
140/120 |
|
Contrast ratio |
5000:1 |
|
Max power consumption(W) |
650 |
|
Average power consumption(W) |
220 |
|
Scan |
1/40 |
|
Frame change frequency(HZ) |
50-60 |
|
Refresh rate(HZ) |
1920 |
|
Life span(hours) |
100,000 |
1. Warranty is for 2 years: During the warranty period, we will maintain and replace the defect components for free if there is any quality problem due to us. After 2 years, we will charge the material and freight cost.
2. Free Training: You can send your engineers to our factory for free of charge training, which includes the software, operation, installation, adjustment, basic repairing, etc.
3. Technical Support: All operation manuals, software, CAD drawings of the steel structure and instruction of installing the cabinets can be provided for free. Online technical support by remote control is also available. If needed, we can send engineers to your country to instruct and help the installation.
4. If you need, we can send our engineer to guide the installation for you. But the relevant cost should be paid by your company such hotel, food, round trip ticket.
1. How about the quality?
Our led products must be aging at least 48 hours before shipping, from purchasing raw materials to ship, each process has strict quality control systems to ensure led display with good quality.
2. What about the warranty?
We have two years warranty, spare parts such as led module, control card, power supply are damaged not caused of artificial damaged, then it's free maintenance and ship back new ones for replacement.
3. Can you offer a technical support?
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Novastar and colorlight or Linsn control systems, our engineer can directly teach you how to operate. We're innovative high-end led display with over 10 years manufacturing experience, and we believe you can get a professional solution and best service from us. We're happy to serve you. If any question, you are welcome to contact us!
