3840Hz P3.9-P7.8 Transparent LED Display
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Eliteled, OEM |
| Certification: | CE |
| Model Number: | P3.9-7.8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box and plywood case |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, D/P, D/A |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Application: | Indoor | Color: | Full Color |
|---|---|---|---|
| Pixel Pitch: | 2.6-5.2mm, 3.9-7.8mm | Product Name: | Transparent Led Wall |
| Brightness: | 800-4500 Cd/sqm | LED Chip: | SMD1921/2121 |
| Cabinet Size: | 1000x1000mm | Scan Mode: | 1/8 |
| Refresh Rate: | 3840Hz | Life Span: | 100000 Hours |
| Warranty: | 2 Years | ||
| Highlight: | P7.8 Transparent LED Display,3840Hz P7.8 Led Glass Wall,3840Hz Transparent LED Display |
||
Product Description
Led Glass Wall Transparent Led Display Screen Slim Body Light Weight Led Panel
Advantages of Transparent LED Display:
1. High transparency
Up to 70% transparency rate could keep the internal natural lighting and viewing, the SMD are almost invisible from a certain distance.
2. Light weight
12kg/㎡ light weight allow small space for the installation possible, and minimizes the negative impact on the appearance of the buildings.
3. Fast installation
Fast lock systems ensure fast installation, saving labor cost.
4. High brightness and energy saving
5000nits brightness ensure the perfect visual performance even under direct sunlight, without any cooling system, saves lots of power.
5. Easy maintenance
Repairing single SMD without taking of single module or entire panel.
6. Stable and reliable
Stability is very import for this product, under the patent of inlaying SMD into PCB, ensure the stability better than other similar products in the market.
7. Wide applications

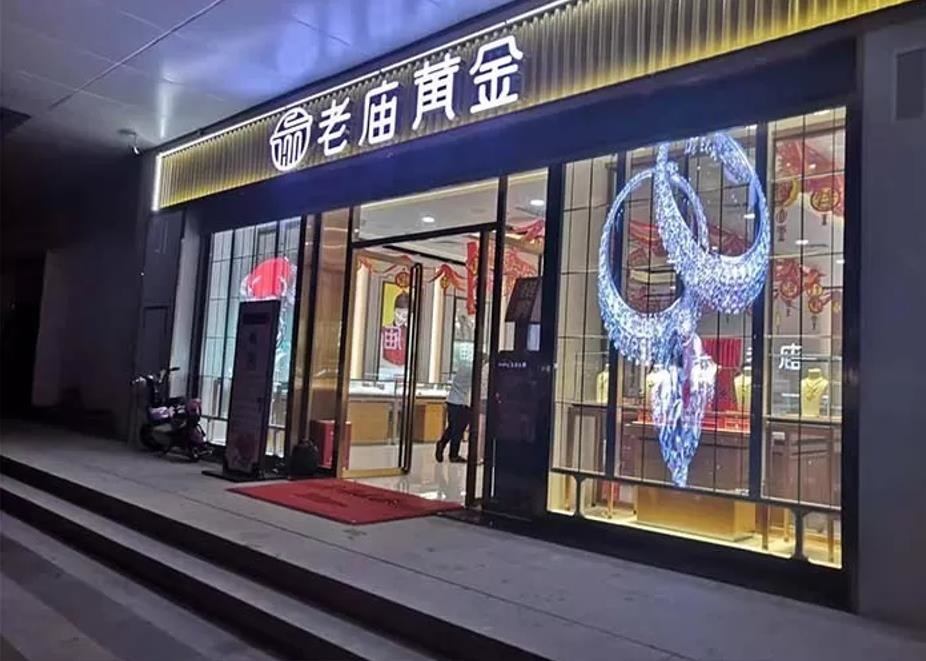

Any building with glass wall, for example, bank, shopping mall, theaters, chain stores, hotels, and landmarks etc.
| Type Number | P3.91-A | P3.91-B |
| Dimension(mm) | 1000x500x76mm | 1000x500x76mm |
| Pixel Pitch(mm) | V:3.91/H:7.8 | V:3.91/H:7.8 |
| Module Standard | 500x125mm | 500x125mm |
| LED Standard | SMD2121 | SMD1921 |
| Scan Mode | 1/16Scan | 1/8Scan |
| Pixel Density(dot/m2) | 32768 | 32768 |
| Max.Power(W) | 460W/m² | 800W/m² |
| Cabinet Weight(kg) | 6kg | 6kg |
| Refresh Rate(Hz) | 1920Hz | 3840HZ |
| Brightness(CD/m²) | 1000CD/m² | 4500CD/m² |
| Grey Level | 16bit | 16bit |
| Working Temperature | -20~60℃ | -20~60℃ |
| Working Humidity | 10%-90%RH | 10%-90%RH |
| Life Span | ≥50000 Hours | ≥50000 Hours |
| Working Voltage | AC 110V/220V,50/60HZ | AC 110V/220V,50/60HZ |
| Control Method | NOVAStar | NOVAStar |
Applications:
After long time technical innovation and development, transparent LED display and led glass screen had been widely accepted by the customers. With the advantages of good heat dissipation, fast installation, high transparency, high brightness and easy maintenance, transparent LED display could be used behind any shape of glass surface, and keep the internal natural lighting and viewing, that’s the reason why it’s the best choice of glass wall advertising.
Looking for an indoor/outdoor rental LED display for an event?
We provide LED screen solutions to take your event to the higher level. Tell us your project , we will make a suitable led screen solution for you.
FAQ:
1. Can we make any size of transparent led display?
Yes, transparent led screen size can be customized, so do the shape of screen.
2. How to install led display?
We will provide drawing of steel structure or hanging truss, then you can install led display very easy.
3. How to choose the LED display?
Please let us know you it will be used indoor or outdoor, where will be installed, and size of led display (Width x Height).
4. How to order from us?
You can place an order by Alibaba online or to our company directly offline, before place an order please confirm with us for every deta.
5. What is your payment terms?
We accept payment online through Alibaba, or offline to our company account by T/T, LC, western union.
6. How to ship?
It is optional and we respect customer's choice. You can choose to ship by air cargo, by DHL (Fedex, UPS etc) international express company, or by sea according to your goods weight and volume and the delivery time you need.
7. How to install it after received?
We will offer you the drawing to guide you for installation, even send our engineer to you for help if needed.
