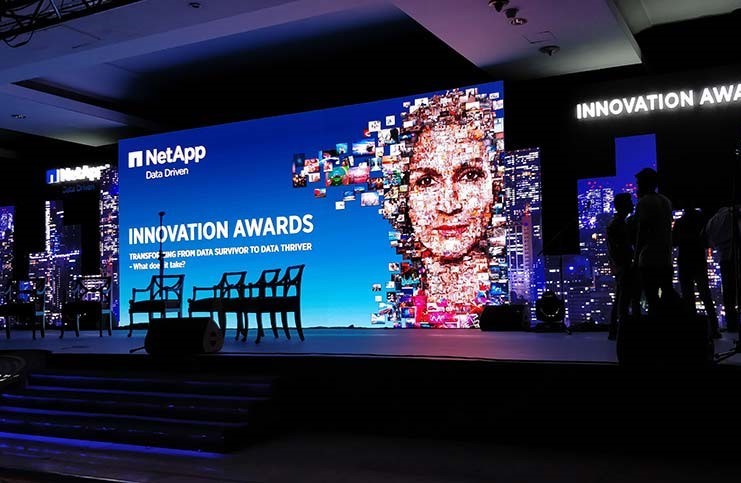

Indoor Curved P3.91 Led Video Wall 500x500mm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EliteLED, OEM |
| Certification: | CE |
| Model Number: | Indoor p3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Flight case |
| Delivery Time: | 15 days |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Application: | Stage Event | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 500x500mm/500x1000mm | Pixel Pitch: | 3.91mm |
| Brightness: | 1200 Cd/sqm | Product Name: | Led Video Display |
| Module Size: | 250mm*250mm | Led Lamp: | Nationstar |
| Refresh Rate: | 3840Hz | Pixel Density: | 65536 Dots/m2 |
| Scan Mode: | 1/16 Scan | Certificate: | CE ROHS |
| High Light: | Indoor Curved P3.91 Led Video Wall,Event Led Screen 500x500mm,P3.91 Led Video Wall 500x500mm |
||
Product Description
1. All panels have high strength corner protectors, protect led lamp from damage during transportation and installation.
| Item | Parameter | ||||
| Module specifications | Mode | p2.604 | p2.97 | p3.91 | p3.91 |
| Module size | 250*250 | 250*250 | 250*250 | 250*250 | |
| Module pixel | 96*96 | 84*84 | 64*64 | 64*64 | |
| scan | 1/32 | 1/28 | 1/16 | 1/16 | |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
| LED | SMD1515 | SMD1515 | SMD2121 | SMD2121 | |
| Max power consumption (W/piece) | 40W | 40W | 40W | 40W | |
| Mask | have | have | have | have | |
| Main Specifications | Cabinet size | 500*500 | 500*500 | 500*500 | 500*1000 |
| Cabinet pixel | 192*192 | 168*168 | 128*128 | 128*256 | |
| Density (dot/m2) | 147456 | 112896 | 65536 | 65536 | |
| Brightness(cd/m2) | 500-1000 | 500-1000 | 500-1000 | 500-1000 | |
| Max power consumption (W/piece) | 160W | 160W | 160W | 320W | |
| Avg power consumption (W/piece) | 50W | 50W | 50W | 100W | |
| Cabinet weight(KG) | 7.5KG | 7.5KG | 7.5KG | 13.6KG | |
| Cabinet material | Die-cast magnesium aluminum box | ||||
| IP grade | IP45 | IP45 | IP45 | IP45 | |
| Gray level | 16 bit | 16 bit | 16 bit | 16 bit | |
| Fresh rate | 3840HZ | 3840HZ | 3840HZ | 3840HZ | |
| Best viewing distance | 3M | 3M | 4M | 4M | |
| Power(V) | AC110-220V | ||||
| Working temperature | -20℃-50℃ | ||||
About Us:
EliteLED is a professional manufacturer of LED Video walls ,outdoor indoor LED Display Screen, LED Panel in Shenzhen, China with led display exported to more than 100 countries and regions, passed CE,ROHS FC Certifications, If you are considering LED go with the known leader of LED display suppliers, please contact us.
FAQ:
1. How about the quality?
Our led products must be aging at least 48 hours before shipping, from purchasing raw materials to ship, each process has strict quality control systems to ensure led display with good quality.
2. What about the warranty?
We have two years warranty, spare parts such as led module, control card, power supply are damaged not caused of artificial damaged, then it's free maintenance and ship back new ones for replacement.
3. Can you offer technical support?
We provide free training for our customers, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Novastar and colorlight or Linsn control systems, our engineer can directly teach you how to operate. We're innovative high-end led display with over 10 years manufacturing experience, and we believe you can get a professional solution and best service from us. We're always happy to serve you. If any question, you are welcome to contact us!
