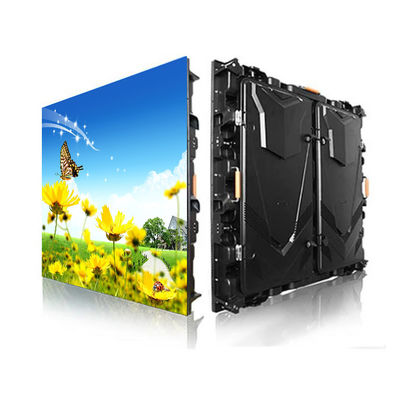

960x960mm P5 Outdoor Led Display SMD2525 Outdoor LED Advertising Screen
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EliteLED |
| Certification: | CE, CCC |
| Model Number: | P5 P8 P10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden cases or flight cases |
| Delivery Time: | 15 days |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Application: | Advertising | Pixel Pitch: | 5-10mm |
|---|---|---|---|
| Brightness: | 7000nits | Product Name: | P10 Outdoor Led Panel |
| Cabinet Size: | 960x960mm | Module Size: | 320x160mm |
| LED Chip: | Nationstar | Control System: | Nova/Linsn |
| Certificate: | CE ROHS FCC | Warranty: | 3 Years |
| Port: | Shenzhen, Guangzhou | ||
| High Light: | 960x960mm P5 Outdoor Led Display,SMD2525 Outdoor LED Advertising Screen,P5 Outdoor Led Display SMD2525 |
||
Product Description
P10 Outdoor panel display for stadium 960x960mm p10 p8 p5 both rental use and fixed installation
Our Advantages
1. Low power consumption, low heat, energy saving and environmental protection.
2.Multiple application for commercial advertising,events
3. Ideal advertising in busy streets,intersections,shows,concerts,sporting events,granding opening etc.
4. Certification:EMC, FCC, IP65
5.Customized size and fast delivery
6.The driver IC adopts the constant current driver IC of the world's leading manufacturers, and has excellent driving performance, stable and reliable.
|
Model |
P4 |
P5 |
P6 |
P8 |
P10 |
|
Pixel Pitch(mm) |
4 |
5 |
6.67 |
8 |
10 |
|
LED Chips |
SMD1921 |
SMD2525 |
SMD3535 |
SMD3535 |
SMD3535 |
|
Pixel density(dots/m2) |
62500 |
40000 |
22477 |
15625 |
10000 |
|
Driving Method |
1/10 scanning |
1/8 scanning |
1/6 scanning |
1/5 scanning |
1/2 scanning |
|
Module Size(mm) |
320*160 |
320*160 |
320*160 |
320*160 |
320*160 |
|
Module Resolution |
80*40 |
64*32 |
48*24 |
40*20 |
32*16 |
|
Cabinet Size( W*L mm) |
960*960 |
960*960 |
960*960 |
960*960 |
960*960 |
|
Cabinet Material |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
Magnesium Alloy |
|
Cabinet Weight( Kg/m2 ) |
35 |
35 |
35 |
35 |
35 |
|
Max.Consumption(W/m2) |
800 |
800 |
800 |
800 |
800 |
|
Ave.Consumption(W/m2) |
350 |
350 |
350 |
350 |
350 |
|
Brightness( Nits ) |
≥5500 |
≥5000 |
≥5500 |
≥5800 |
≥6000 |
|
Viewing Angle (Vertical / Horizontal) |
120° / 120° |
120° / 120° |
120° / 120° |
120° / 120° |
120° / 120° |
|
Refresh Rate |
≥1920Hz |
≥1920Hz |
≥1920Hz |
≥1920Hz |
≥1920Hz |
|
IP Level |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
Trade Terms:
1. Payment: T/T ,ususally 30% prepayment before production, 70% balance to be paid before delivering,it also change according to total quantity
2. Production lead time less 20 sqm: 8-15days, more than 50 sqm:30days
3. Sample can be deliveried within 3days
4. Shipping port: Shenzhen, Mainland China
5. Discounts are offered based on order quantities
6. MOQ:1 sqm/1pcs
1. What about the warranty?
We have two years warranty, spare parts such as led module, control card, power supply are damaged not caused of artificial damaged, then it's free maintenance and ship back new ones for replacement.
2. How about the quality?
Our led products must be aging at least 48 hours before shipping, from purchasing raw materials to ship, each process has strict quality control systems to ensure led display with good quality.
3. Can you offer a technical support?
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Novastar and colorlight or Linsn control systems, our engineer can directly teach you how to operate. We're innovative high-end led display with over 10 years manufacturing experience, and we believe you can get a professional solution and best service from us. If any question, you are welcome to contact us! We're happy to serve you.
