P5.9 Outdoor Led Advertising Board 10000nits With Nova Control System
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EliteLED, OEM |
| Model Number: | P5.9 P8 |
Payment & Shipping Terms:
| Price: | $500.00 - $1,000.00/Square Meters |
|---|---|
| Packaging Details: | Wooden cases or flight cases |
| Supply Ability: | 3000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor Advertising | Color: | Full Color |
|---|---|---|---|
| Panel Size: | Customized | Pixel Pitch: | 5-8mm |
| Brightness: | 8000-10000nits | Product Name: | P5 Outdoor Led Display |
| Cabinet Size: | 640x960mm | Module Size: | 320x320mm |
| LED Chip: | Nationstar, KN-light | Refresh Rate: | 1920 Hz |
| Material: | Die Casting Aluminum | Control System: | Nova |
| Certificate: | CE ROHS FCC | Warranty: | 2 Years |
| Port: | Shenzhen, Guangzhou | ||
| High Light: | P5.9 Outdoor Led Advertising Board,Outdoor Led Advertising Board 10000nits,P5.9 Outdoor Led Advertising screen |
||
Product Description

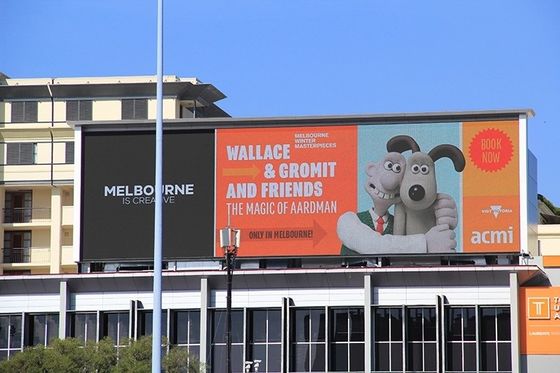

2021 new outdoor led advertising board P5.9 P8 high brightness 10000nits energy saving led screen
Advantages:
1. High Brightness: Up to 10000 nits! Make sure the screen is still clear enough even under the sunlight directly.
2. Energy Saving: Using common cathode power supply and led lamp, much lower power consumption and less heat, no need air conditioning.
3. High Performance: Die casting aluminum cabinet with aluminum base module, good heat dissipation and durable, not fear sun, rain or wind at all.
4. Front Maintenance: Easy to install and maintain, saving space and labor cost.
5. The BEST PRICE: You are welcome to get a free project evaluation. Thank you!
|
Model |
P5.93 |
P8 |
|
Module Size |
320*320mm |
320*320mm |
|
Module Resolution |
54*54 dots |
40*40 dots |
|
Driving Method |
1/7 |
1/5 |
|
LED Lamp |
SMD2727 |
SMD3535 |
|
Mask |
Have |
Have |
|
Cabinet Size |
640*960mm |
640*960mm |
|
Cabinet Resolution |
108*162 dots |
80*120 dots |
|
Pixel density |
28476 dots/sqm |
15625 dots/sqm |
|
Best Viewing Distance |
> 6m |
> 8m |
|
Brightness |
8000 - 10000 cd/sqm |
|
|
Avg Power Consumption |
150W/sqm |
|
|
Cabinet Weight |
24KG |
|
|
Cabinet Material |
Die casting aluminum |
|
|
IP Rating |
IP65 |
|
|
Gray Scale |
14Bit |
|
|
Refresh Frequency |
1920 Hz |
|
|
Frame Frequency |
50/60 Hz |
|
|
Viewing Angle |
140/120 |
|
|
Input Voltage |
AC110V - AC220V |
|
|
Operating Temperature |
-40℃ - 60℃ |
|
|
Storage Humidity |
10%RH - 90%RH |
|
|
Life Span |
≥ 100,000H |
|
1. What about the warranty?
We have two years warranty, spare parts such as led module, control card, power supply are damaged not caused of artificial damaged, then it's free maintenance and ship back new ones for replacement.
2. How about the quality?
Our led products must be aging at least 48 hours before shipping, from purchasing raw materials to ship, each process has strict quality control systems to ensure led display with good quality.
3. Can you offer a technical support?
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Novastar and colorlight or Linsn control systems, our engineer can directly teach you how to operate. We're innovative high-end led display with over 10 years manufacturing experience, and we believe you can get a professional solution and best service from us. If any question, you are welcome to contact us! We're happy to serve you.
