DIP346 15.625mm Mesh Curtain Led Display Transparent Led Wall For Building Facade
|Place of Origin:||Guangdong, China|
|Brand Name:||Eliteled, OEM|
Payment & Shipping Terms:
|Minimum Order Quantity:||1sqm|
|Packaging Details:||Carton box and plywood case|
|Delivery Time:||15 days|
|Payment Terms:||T/T, L/C, D/P, D/A|
|Pixel Pitch:||15.625mm||Product Name:||LED Curtain Screen|
|Brightness:||9000 Cd/sqm||LED Chip:||DIP346|
|Cabinet Size:||500x1000mm||Refresh Rate:||1920Hz|
|Life Span:||100000 Hours||Warranty:||2 Years|
15.625mm Mesh Curtain Led Display,
DIP346 Mesh Curtain Led Display,
DIP346 15.625mm Transparent Led Wall

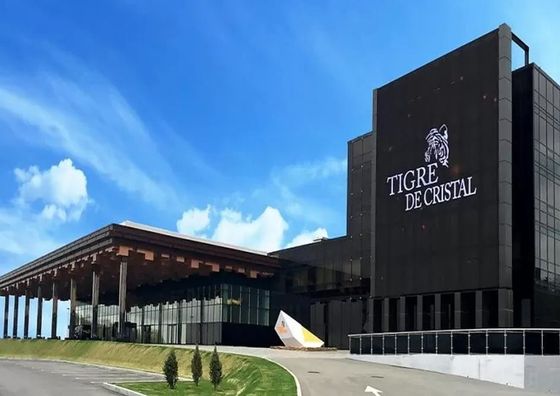

Mesh Curtain Led Display Screen Transparent Led Wall For Building Facade Adverting
1. Lightweight and ultra-thin: Light weight, easy to install and maintain, no need to support structural reinforcement costs, high efficiency.
2. High Transparency Rate: Up to 70% transparency, making the glass curtain wall a realistic video wall for outdoor viewing outside the field.
3. All weather: Trouble-free operation at temperatures -30 °C to 60 °C, aerodynamic wind-resistant design to withstand storms and typhoons.
4. Low power consumption: Using high-brightness LED lights, high conversion efficiency and PFC function power supply, reducing power consumption by more than half compared with conventional power supplies.
5. No steel structure: When installed on the wall of a building without steel structure, it can reduce the weight of steel structure by about 50kg per square meter.
6. Front maintenance: It can be installed before and after, greatly improving various adaptive conditions for on-site installation.
|Physical Pitch||15.625 mm||W31.25mm*H15.62mm|
|Pixel Density||4096 pixels/m²||2048 pixels/m²|
|Cabinet Dimensions (mm)||500*1000||500*1000|
|Average Power Consumption||200 W/m²||200 W/m²|
|Max Power Consumption||400 W/m²||400 W/m²|
|Refresh Rate||1920/3840 Hz||1920/3840 Hz|
|Brightness||8000 nits||6000 nits|
|Scan Method||Static Scanning||Static Scanning|
|Life Span||≥100000 Hours||≥100000 Hours|
|Working Voltage||AC 110V/220V||AC 110V/220V|
