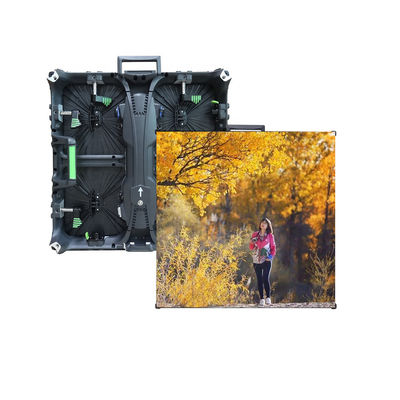

High Brighness IP65 Outdoor Rental Led Screen Waterproof 4800Cd/Sqm
Product Details:
| Place of Origin: | China |
| Brand Name: | EliteLED, OEM |
| Certification: | CE |
| Model Number: | Outdoor p2.97 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Flight case |
| Delivery Time: | 18 days |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Pixels: | 2.97mm, 3.91mm,etc. | Color: | Full Color |
|---|---|---|---|
| Product Name: | P2.9 Led Video Wall | Brightness: | 4800 Cd/sqm |
| Panel Size: | 500x1000mm | Refresh Rate: | 3840Hz |
| LED Chip: | Nationstar, Kinglight | Usage: | Outdoor |
| High Light: | IP65 Outdoor Rental Led Screen,4800Cd/Sqm Outdoor Rental Led Screen,IP65 outdoor waterproof led screen |
||
Product Description
Description of Rental LED Screen
Outdoor Waterproof Led Screen pixel include 4mm, 5mm, 6.67mm, 8mm, 10mm, 16mm, within these pixels, 4mm, 5mm, 6.67mm are the most hot-selling and highest cost-effective series. You can use it on car for advertising or fixed in some place as billboard or on building.
Specification of Rental LED Screen
| BOF-B-4 | BOF-B-5 | BOF-6 | |
| Physical Pitch | 4mm | 5mm | 6.67mm |
| Pixel Configuration | SMD1818 | SMD2727 | SMD2727 |
| Pixel Density | 62,500 pixels/Sqm | 40,000 pixels/Sqm | 22,376 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 320 x 160 | 320 x 160 | 320 x 160 |
| Panel Dimensions (mm) | 960 x 960 x 150 | 960 x 960 x 150 | 960 x 960 x 150 |
| NO. of Modules Per Panel (W x H) | 3 x 6 | 3 x 6 | 3 x 6 |
| Physical Resolution of Module (W x H) | 80 x 40 | 64 x 32 | 48 x 24 |
| Physical Resolution of Panel (W x H) | 240 x 240 | 192 x 192 | 144 x 144 |
| Panel Material | Steal / Aluminum | Steal / Aluminum | Steal / Aluminum |
| Weight (kg/Sqm) | 65 / 45 | 65 / 45 | 45 |
| Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 360 W /Sqm | 360 W /panel | 360 W /panel |
| Max Power Consumption | 900 W /Sqm | 900 W /panel | 900 W /panel |
| Brightness | >6,500 nits | >6,500 nits | >6,500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Rear | Rear | Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/8 Scan | 1/8 Scan | 1/8 Scan |
Feature Of Indoor Rental LED Screen
- High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
- Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
- High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
- Good heat dissipation with fans and using meanwell power supply, long lifespan.
- You can adjust the resolution by change modules directly, this can save your cost and labor.
- 250x250mm module, compatible with various pitches such as PH2.6/PH2.9/PH3.9, high selectivity
- High-precision and ultra-practical design, 500x500/1000mm cabinet, light and easy to assemble
- Customized arc-side locks design, the angle can be adjusted to achieve arc, round and S-shaped splicing.
- High-contrast outdoor pure black light, non-destructive refresh and grayscale. Achieve ultra-high contrast 8000:1, low brightness 1000~3000cd adjustable, protect the human eye, meet indoor and outdoor application scenarios
- Configure PWM constant current drive IC to eliminate the "caterpillar" image, low brightness and no color cast, no color block, gray scale is too smooth and no jump, no first line dark phenomenon, refresh ≥ 3840HZ, complete guarantee 16bit gray scale, Real color reproduction, high quality display
- The flat spray mask design ensures that the entire screen plane is free of any warping, and the high-quality black protective colloid is used to perfectly realize the full-angle display of the lamp bead.
Application Of Indoor Rental LED Screen
- Business organizations
Supermarket, large-scale shopping malls, star -rated hotel, travel agencies.
- Financial organizations
Bank, insurance companies, post offices, hospital, schools
- Public place
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting room
- Entertainments
LED Advertising Display Advantages:
1, High quality SMD led panels, stable and high durability.
2, Without ghosting, clear and clean.
3, High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.
