320x160mm 350W Outdoor Rental LED Display 5mm Led Screen Back Maintenance
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EliteLED |
| Certification: | CE, UL |
| Model Number: | P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden cases or flight cases |
| Delivery Time: | 18 days |
| Supply Ability: | 5000sqm/month |
|
Detail Information |
|||
| Application: | Advertising | Color: | Full Color |
|---|---|---|---|
| Pixel Pitch: | 5mm | Brightness: | 6000nits |
| Product Name: | P5 Outdoor Led Display | Cabinet Size: | 640x640mm |
| Module Size: | 320x160mm | LED Chip: | Nationstar |
| Warranty: | 3 Years | Port: | Shenzhen, Guangzhou |
| High Light: | 320x160mm Outdoor Rental LED Display,Nationstar chip 350W 5mm Led Screen,350W Outdoor Rental LED Display |
||
Product Description

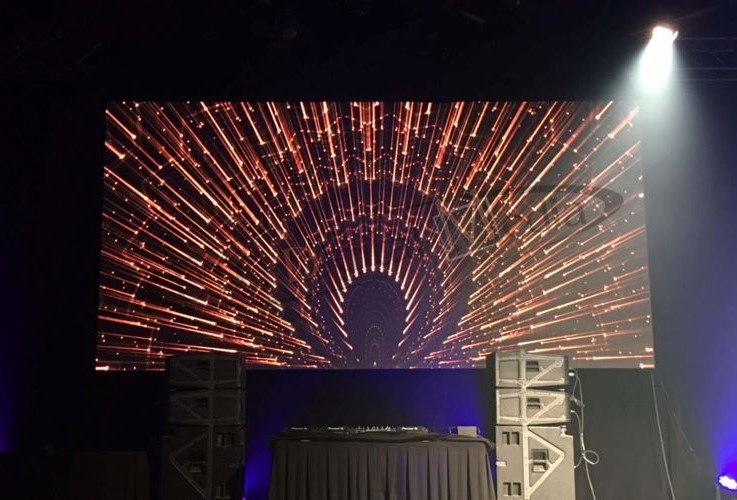

Waterproof Outdoor P5 Led Rental Screen Led Panel For Stage Event High Brightness
Our Advantages:
1. 24 Hours after sales support, professional support, manual book, and remote control if customer need it, not only sell display to you,but more service.
2. Surely screens from factory are 100% tested and no any quality problem, we will be responsibile for it if have any quality problem.
3. We offer 2 years warranty to our product.
4. Customized design is available.
5. The BEST PRICE. You are welcome to contact us for a free project evaluation. Thank you!
| Type number | P5 | Module size | 320*160mm |
| Pixel pitch | 5mm | Module resolution(L*W) | 64*32 |
| Pixel density(dot/sqm) | 40000 | Max.power consumption | 800W/sqm |
| LED sandard | SMD2727 | Cabinet module quantity | 8pcs |
| Scan mode | 1/8 | Avg.power consumption | 350W |
| Grey level | 4096 | Cabinet resolution(dot) | 128*128 |
| Refresh rate(HZ) | >1920 | Cabinet material | Aluminum |
| Brightness | >6000 | Protection level | IP65 |
| Best viewing distance | >5m | Viewing angle | Horizontal 120 degree,Vertical 120 degree |
| Working temperature | -20~50℃ | Input voltage | AC 220V/(110V)±15% |
| Installation way | Hoisting/Fixed | Life span | >50000 hours |
| Cabinet weight | 11KG | Maintenance | Back maintenance |
1. Warranty is for 2 years. During the warranty period, we will maintain and replace the defect components for free if there is any quality problem due to us. After 2 years, we will charge the material and freight cost.
2. Free training: You can send your engineers to our factory for free of charge training, which includes the software, operation, installation, adjustment, basic repairing, etc.
3. Technical Support: All operation manuals, software, CAD drawings of the steel structure and instruction of installing the cabinets can be provided for free. Online technical support by remote control is also available. If needed, we can send engineers to your country to instruct and help the installation.
4. If you need, we can send our engineer to guide the installation for you. But the relevant cost should be paid by your company such hotel, food, round trip ticket.
1. What about the warranty?
We have two years warranty, spare parts such as led module, control card, power supply are damaged not caused of artificial damaged, then it's free maintenance and ship back new ones for replacement.
2. How about the quality?
Our led products must be aging at least 48 hours before shipping, from purchasing raw materials to ship, each process has strict quality control systems to ensure led display with good quality.
3. Can you offer a technical support?
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Novastar and colorlight or Linsn control systems, our engineer can directly teach you how to operate. We're innovative high-end led display with over 10 years manufacturing experience, and we believe you can get a professional solution and best service from us. If any question, you are welcome to contact us! We're happy to serve you.
